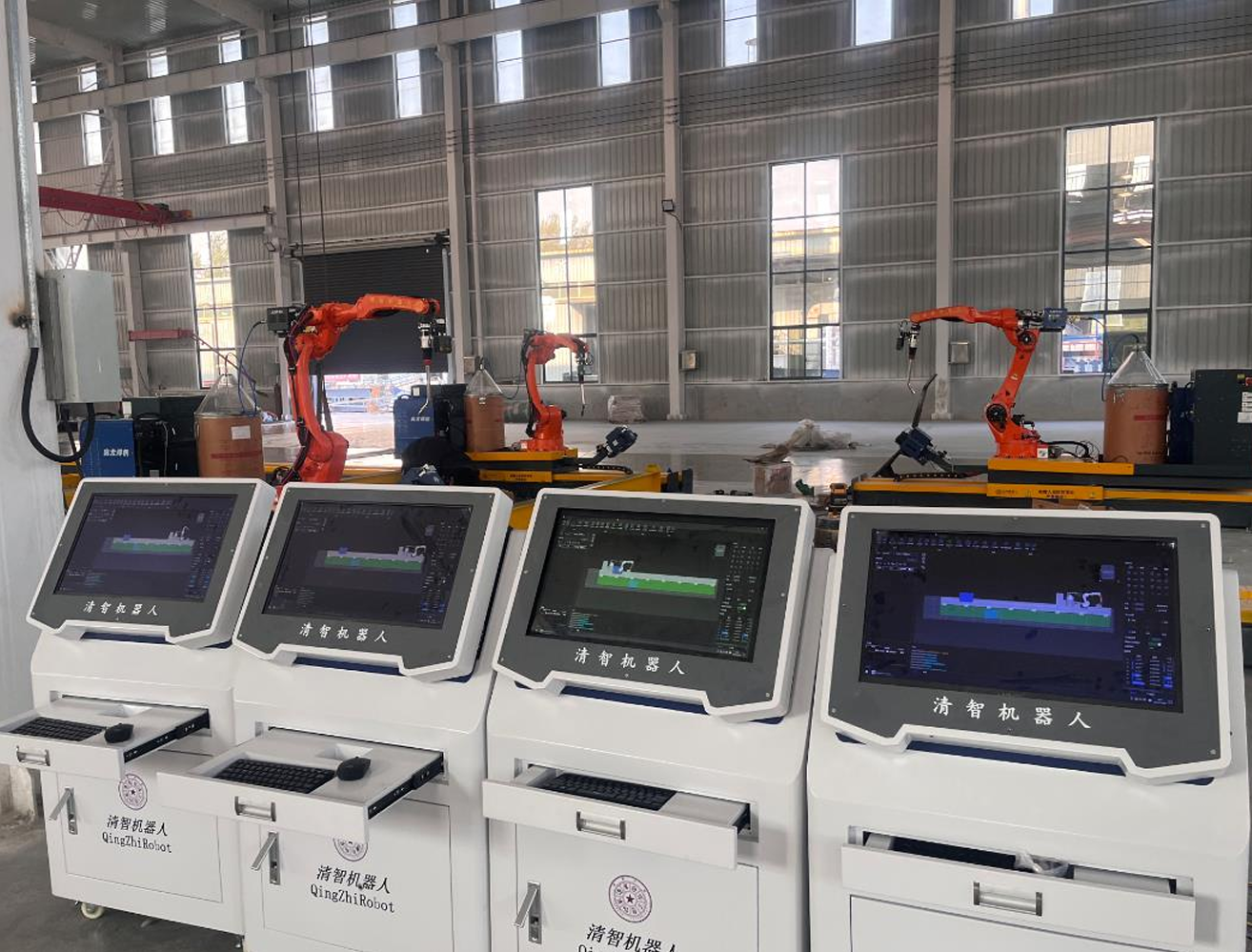

Ground-Rail Welding Robot
Workstation

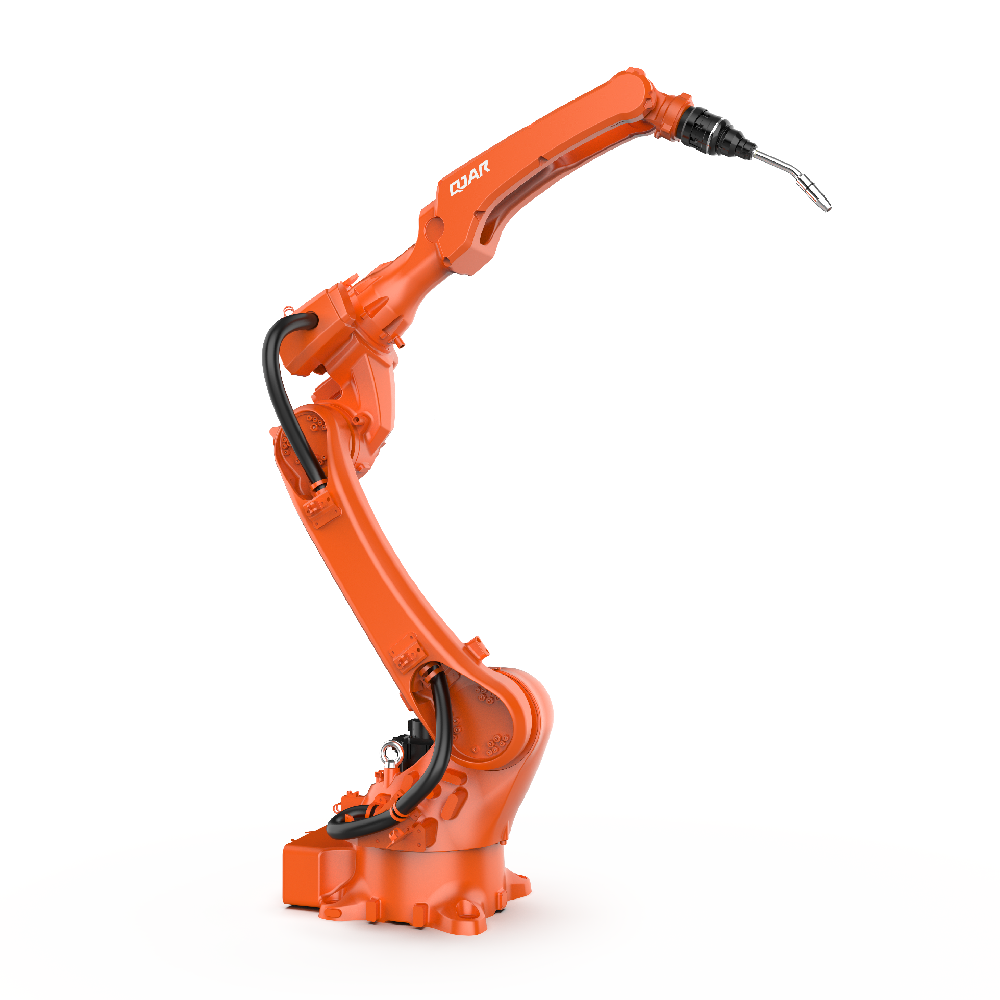

Model: QJR6-2000H
Load: 6kg
Boom: 2014 mm
Repeatability: ±0.08mm
-
Enhanced reducer with large reduction ratio design,better
control the accuracy; - 4th axis hollow structure used double angular contact bearingsto replace the traditional structure. Improve joint supportedrigidity;
- 4, 6 axis with special gear clearance adjustment structurehigher joint precision;
-
The wrist is changed into a U-shaped structure to improve the
stiffness; - With the above characteristics, the motion stability of thelengthened welding robot is greatly optimized;
- The wrist is shortened to improve flexibllity;
- Special wrist noise reduction structure, lower running noise;
- New appearance with new spray painting process, excellentsensory effect.
Parameters of Ground-Rail Model
| Equipment Name: | Ground-rail Welding Robot Workstation |
|---|---|
| Optional model type: | QZ-DG7/12, QZ-DG7/14, QZ-DG7/16, QZ-DG7/18, QZ-DG7/24; (following data for QZ-DG7/12) |
| Area: | 12000mm x 3500mm x 2000mm |
| Total power: | 25kW-32kW |
| Voltage: | 50-60Hz, 380V |
| Working hours: | 7x24h |
| Accuracy of repeatablypositioning: | +0.08mm |
| Working scope (one side) | Length 12000mm; Height 600mm; W1200mm |
| Welding Position: | Flat weld (PA), fillet weld (PB), horizontal weld (PC),vertical upward weld (PF), vertical downward weld (PG) |
| Application field: | Steel structure, F-type steel structure, box structure,bridge and ship plate unit structure |
Ground-Rail Welding Robot
Workstation
Model: QJR6-2000H
Load: 6kg
Boom: 2014 mm
Repeatability: ±0.08mm
-
Enhanced reducer with large reduction ratio design,better
control the accuracy; - 4th axis hollow structure used double angular contact bearingsto replace the traditional structure. Improve joint supportedrigidity;
- 4, 6 axis with special gear clearance adjustment structurehigher joint precision;
-
The wrist is changed into a U-shaped structure to improve the
stiffness; - With the above characteristics, the motion stability of thelengthened welding robot is greatly optimized;
- The wrist is shortened to improve flexibllity;
- Special wrist noise reduction structure, lower running noise;
- New appearance with new spray painting process, excellentsensory effect.
Place workpieces
Multi-way to Import model
Match automatically welding process
Generate automatically welding path
Start welding
MECHANICAL PARTS
4. One-piece cast steel slider ensures the robot’s movement speed and accuracy. 5. Ground rail running speed(1-1.7m/s) is more than twice as fast as comparable products. 6. The entire machine uses highly flexible cables for wiring, ensuring long-term stable operation
1 Integrally welded, modular structure, high strength.
2 All structural parts undergo high temperature and vibration stress relief
3 Modular design of the ground rail allows for various configurations
